WITH PANEL
DESIGN INVERTER

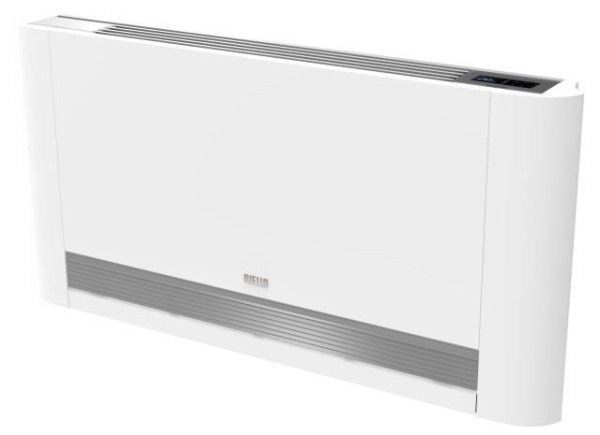

The DESIGN INVERTER are the Riello fan coils with DC Brushless Inverter motors, for a continuous variation from 0 to 100% of the air flow and consequently the heating and cooling capacity. The DESIGN INVERTER quickly heat and cool any area, and it is possible to choose between two dedicated functions: PERFORMANCE for commercial needs, when high efficiency and high effectiveness are required, and COMFORT for residential needs, to ensure always maximum low-noise operation. Thanks to the DC Brushless motors, the DESIGN INVERTER save up to 50% in electricity compared to the fan coils with traditional motors (ON/OFF). Just like the whole HELIOTERM family, the DESIGN INVERTER range is extremely thin, with a depth of just 13 cm.

The range comes in 5 models with a cooling capacity from 830 W up to 4560 W and a heating capacity from 1090 W up to 4860 W.

The wide range of accessories and e controls with a touch DISPLAY support a wide application range.

All versions can be installed vertically or horizontally (using a specific accessory), with connections on the left. The structure is made of zinc-coated sheet with ABS side parts; the front delivery grille is made of aluminium.

– Extremely thin

– Depth of 13 cm

– Units can be installed both vertically and horizontally

– Ease of installation with left connections

– Easy to remove and clean the filters

– Touch Display commands

Tangential fan coils
Vertical or horizontal installation (with accessory)
